2.007 Design and Manufacturing I

Competition Robot

Designed, calculated, and manufactured a competition robot's drivetrain, selecting motor count and gear ratio from torque-speed analysis.

Drivetrain DesignManufacturing

Highlights

Graphed torque-speed curves across motor counts and gear ratios to select a 1:2 gear ratio for max power and torque
Prototyped the gear train in cardboard before machining the final aluminum drivetrain

Gearbox technical drawing — Gearbox layout drawing

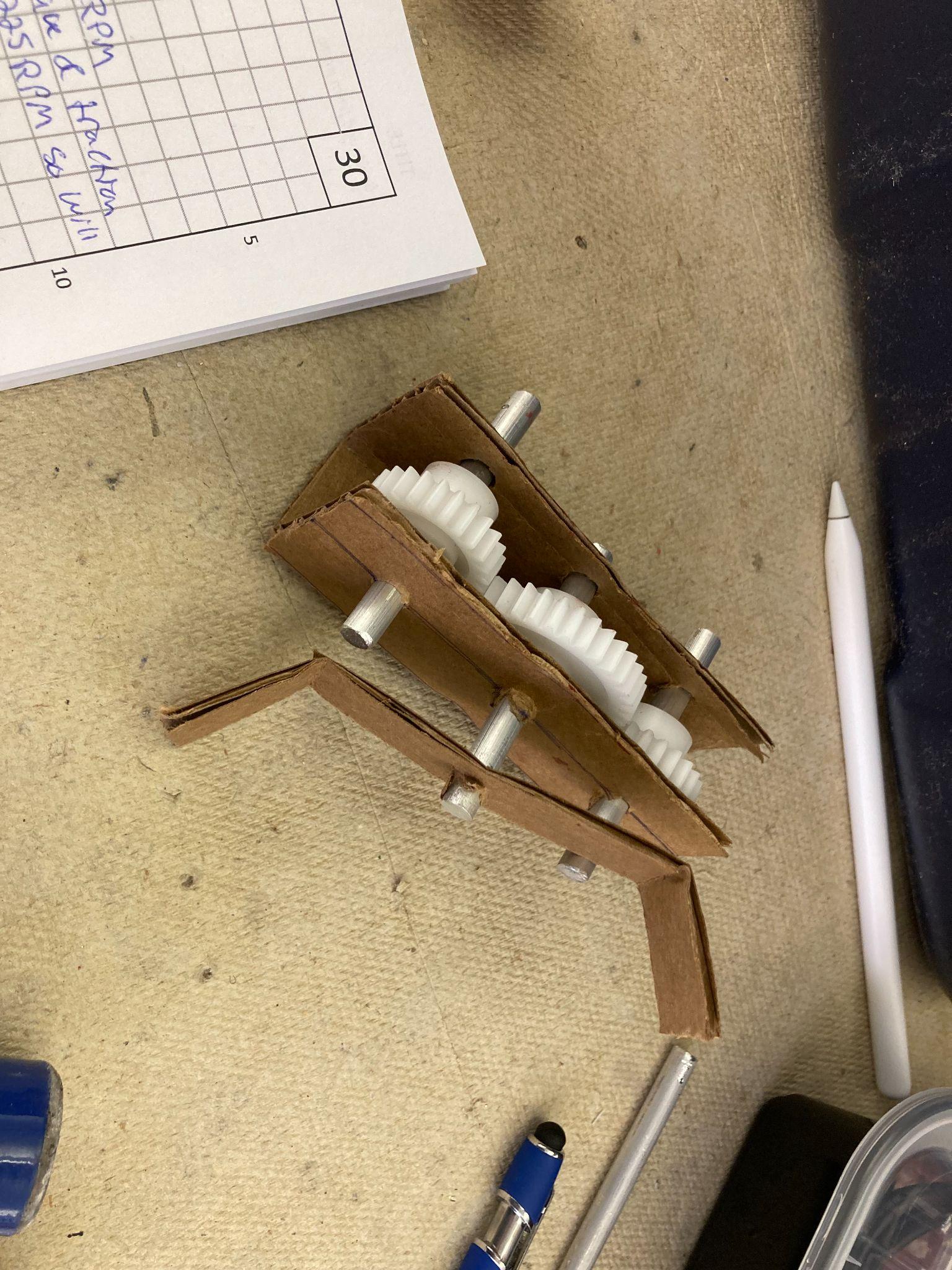

Cardboard gear train prototype — Cardboard prototype of the gear train

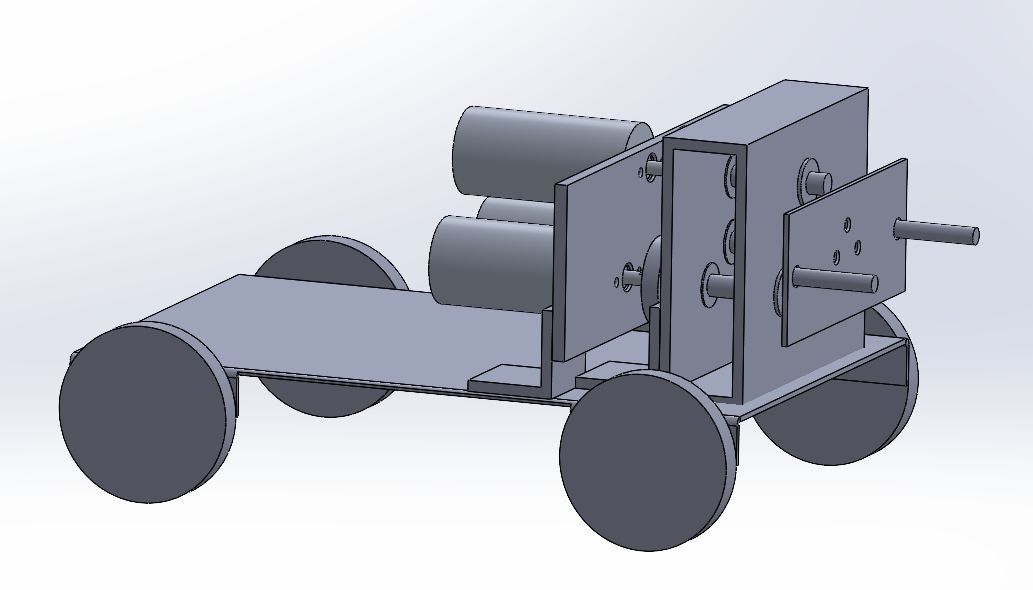

CAD render of the competition robot — Full vehicle CAD render

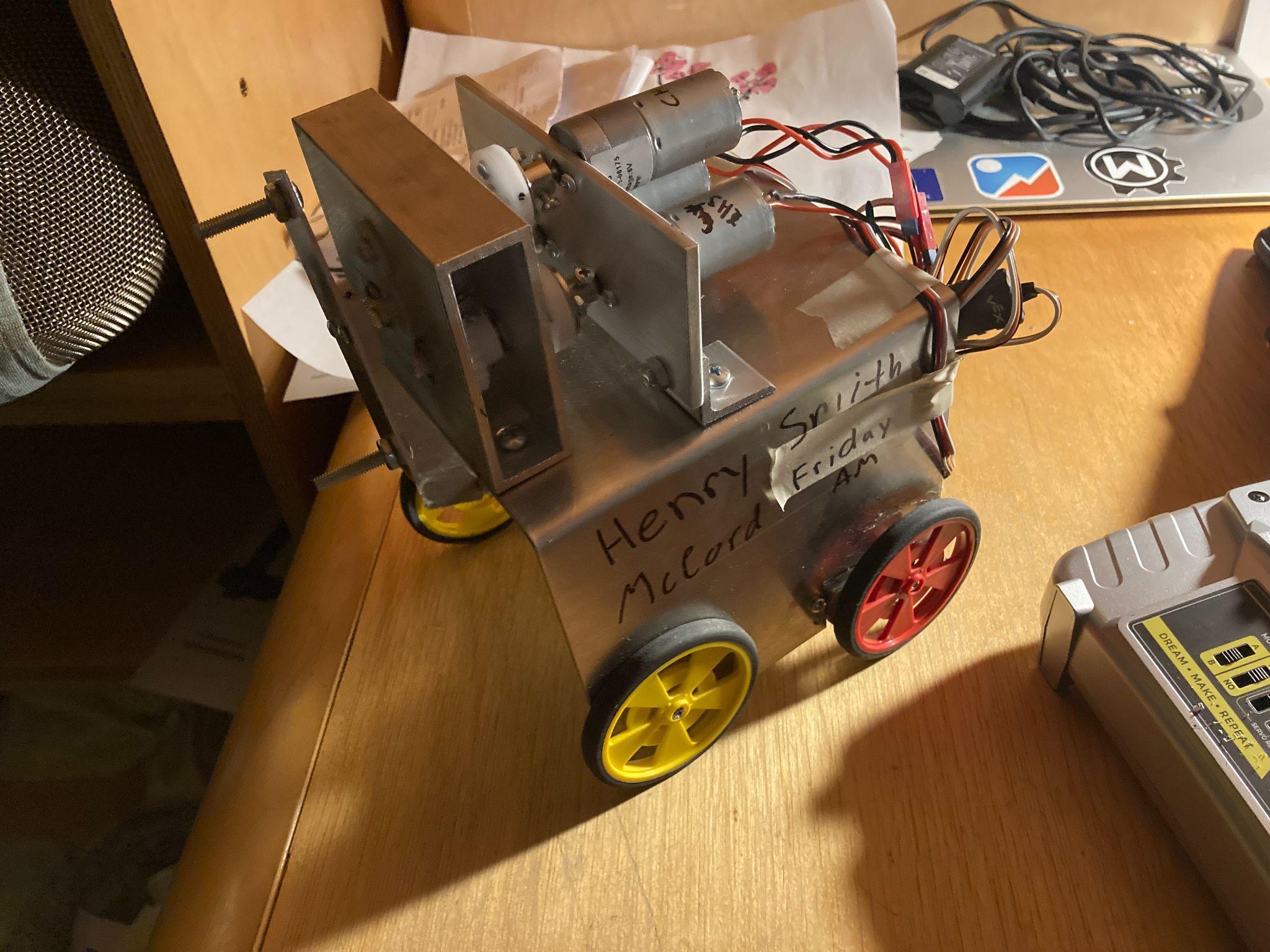

Final machined robot drivetrain — Final machined drivetrain

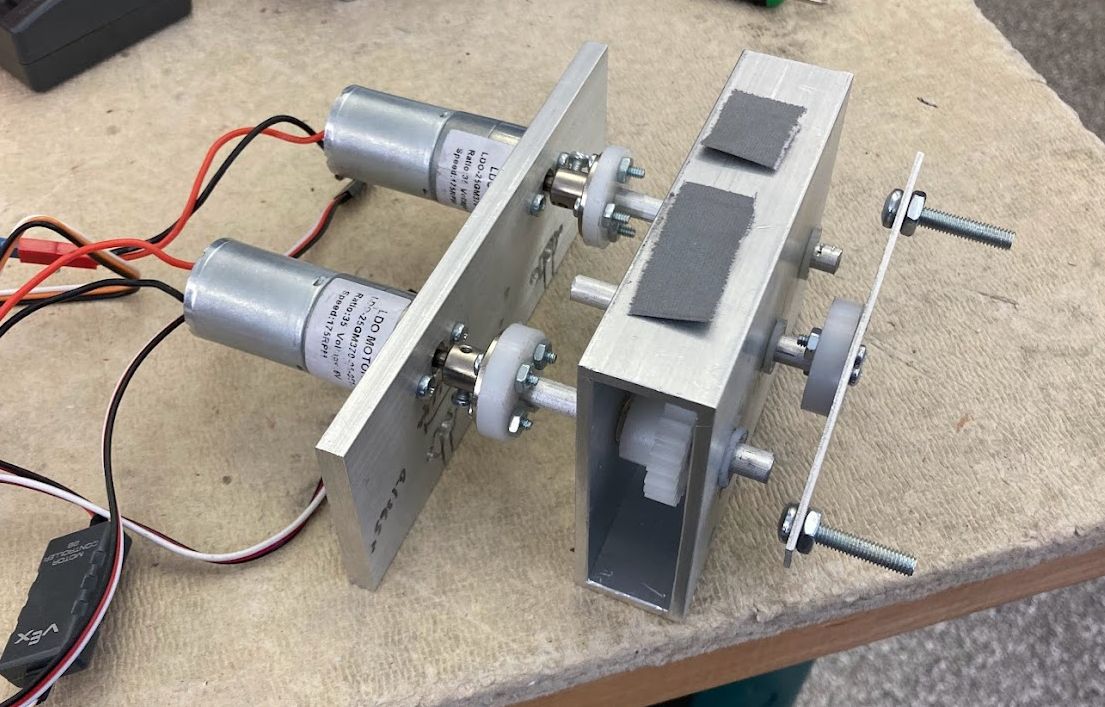

Final robot on the workbench — Finished robot
